- Synchronous reactor
- Series inductor
- Synchronous condenser
- Series capacitor
Answer: 3. Synchronous condenser
Explanation:
Which device is used in substations to improve the power factor?
A synchronous condenser is a type of synchronous machine that is used in electrical power systems to provide reactive power support and improve the power factor. It is essentially a large rotating mass with a small amount of winding that is connected to the grid through a switchgear.
When a power system has a low power factor, it means that there is a large amount of reactive power flowing in the system, which can result in inefficient use of the available power. A synchronous condenser is designed to provide a leading reactive power, compensating for the system's lagging reactive power, thus improving the power factor.
A synchronous condenser operates in a manner similar to a synchronous motor, but without a connected mechanical load. The rotor of the synchronous condenser is connected to the grid, and the stator windings are connected to a voltage source. When the voltage source is connected to the stator windings, a magnetic field is produced that rotates the rotor. This rotation of the rotor generates a leading reactive power, which is fed back into the grid.
The leading reactive power generated by the synchronous condenser reduces the overall reactive power demand from the power supply, improving the system's power factor. By controlling the output of the synchronous condenser, the reactive power demand of the system can be managed, ensuring that the power factor remains at an optimal level.
Synchronous condensers are often used in large power systems, such as power grids and industrial plants, where the power factor is critical for efficient operation. They are also used to support voltage stability and improve the system's dynamic response during transient conditions.
Which device is used to improve the overvoltage condition at the receiving end of the transmission line?

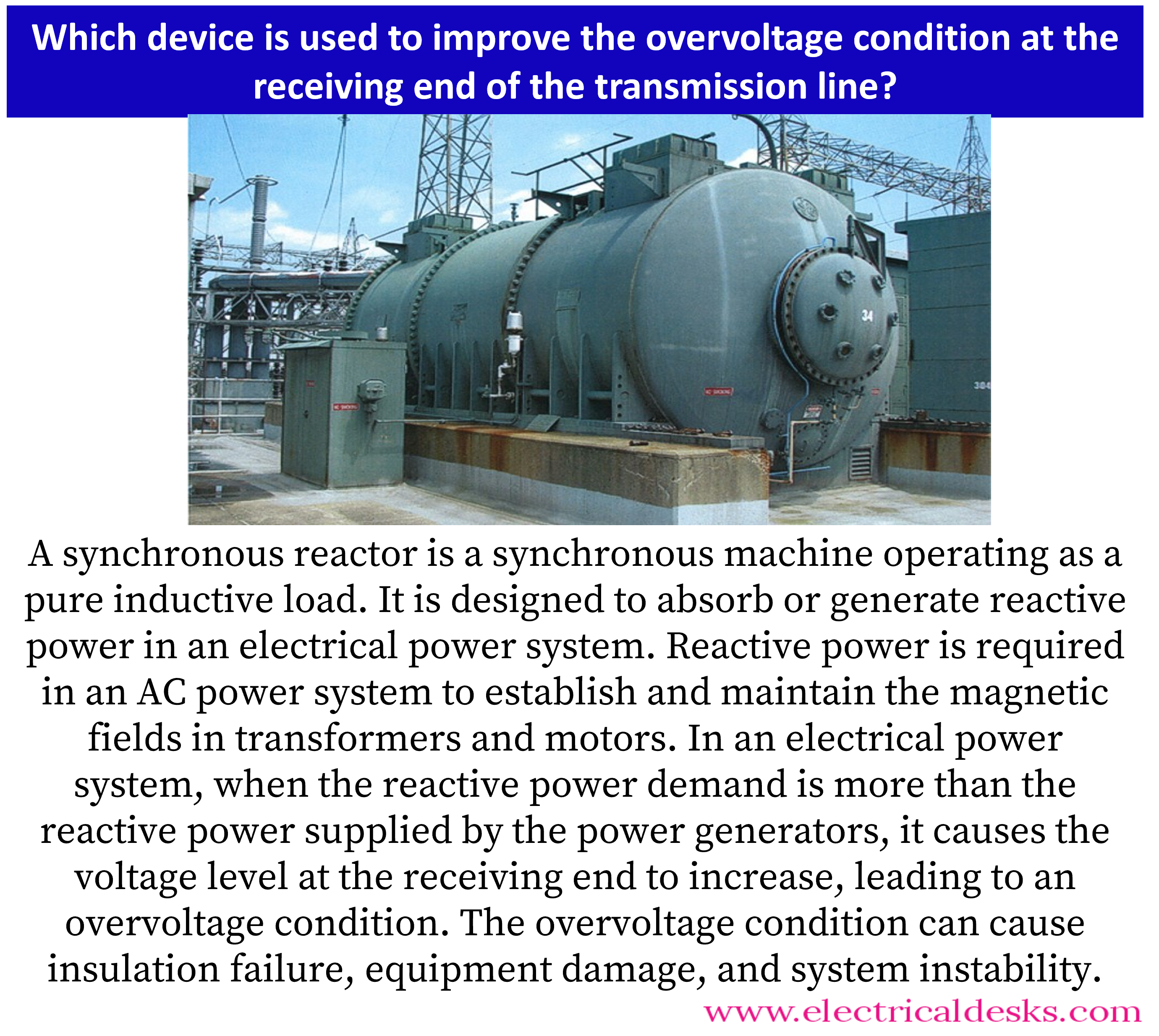

A synchronous reactor is a synchronous machine operating as a pure inductive load. It is designed to absorb or generate reactive power in an electrical power system. Reactive power is required in an AC power system to establish and maintain the magnetic fields in transformers and motors.
In an electrical power system, when the reactive power demand is more than the reactive power supplied by the power generators, it causes the voltage level at the receiving end to increase, leading to an overvoltage condition. The overvoltage condition can cause insulation failure, equipment damage, and system instability.
A synchronous reactor can help in improving the overvoltage condition by absorbing the excess reactive power available in the system. The synchronous reactor is connected to the system in such a way that it absorbs the reactive power when the voltage level is high and releases the reactive power when the voltage level is low. This helps to maintain a constant voltage level at the receiving end of the transmission line.
Which devices are used as current limiting reactors to increase the impedance of a system?
A series inductor, also known as a series reactor, is a type of inductor that is placed in series with a circuit or load. It is designed to increase the impedance of the system, which in turn limits the flow of current through the circuit. This is useful in a number of applications, including electrical power systems, where it can be used to protect against voltage surges and other electrical disturbances.
Current limiting:
One of the primary uses of a series inductor is to limit the flow of current through a circuit. By adding an inductor in series with the load, the effective impedance of the circuit is increased, which in turn limits the flow of current. This can be useful in a variety of applications where it is important to limit the amount of current flowing through a circuit, such as in electrical power systems or in motor control applications.
Increased impedance:
The addition of a series inductor increases the impedance of the circuit or system. Impedance is a measure of the opposition to the flow of electrical current and is typically measured in ohms. By increasing the impedance of the system, the series inductor can help to reduce the effects of voltage surges and other electrical disturbances. This can be particularly important in applications where the circuit or system is exposed to high levels of electrical noise or other types of interference.
Protection against voltage surges:
Series inductors can also be used to protect a circuit or system against voltage surges. When a voltage surge occurs, it can cause a sudden increase in the amount of current flowing through the system. This can be dangerous, as it can damage sensitive electronic components or even cause a fire. By adding a series inductor, the surge current is limited, which can help to protect the system from damage.
